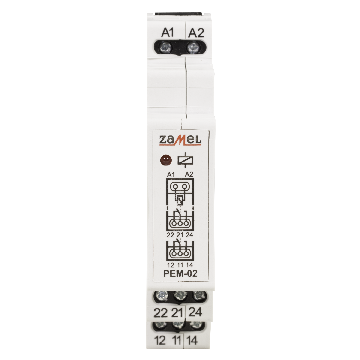

ZAMEL-PEM-02/230 - Electromagnetic Relay 230VAC 2X8A

Hover over image to zoom

  • Image 1
ZaMeL
£16.20 (inc VAT) £13.50 (exc VAT)
SKU:
PEM-02/230
Weight:
0.10 KGS
Availability:
Next Day Delivery
Current Stock:
20

 Product Description

Electromagnetic relays may be used in various applications where load current increase is needed.

The relays assure voltaic insulation between a control unit and a load circuit.

The relays are fitted with NO / NC dead contacts. It is possible to connect voltage of 0 ÷ 250 V AC to the contacts.

Features

- Maximum load current 2 x 8 A
- Applicable together with control systems powered with typical voltages: 12, 24, 48, 110 V AC/DC, 230 V AC
- Relay state indicator
- Load current increase
- Capability of changing motor rotation directrion by means of two dependent and separated contacts

Technical details

Mounting method DIN Rail Mounted
Rated current 8 A
Number of change-over contactse 2
Control voltage 1 24 V
Type of control voltage 1 AC / DC
Frequency control voltage 1 50/60 Hz
Voltage type of supply voltage AC / DC
Supply voltage 24 V
Max. switching current (cos phi = 0.6) 5 A
Max. incandescent lamp load 1000 W
Max. load fluorescent lamp 250 VA
Max. load fluorescent lamp (Duo circuit) 500 VA
Max. load fluorescent lamp (parallel compensated) 375 VA
Power supply terminals A1, A2
Control element 2 x NO/NC - 8 A / 250 V AC
Rated temperature - 20/45 °C
Protection degree IP20
Dimensions 90 x 17.5 x 66 mm



Downloads

Datasheet/Instruction

 Warranty Information
