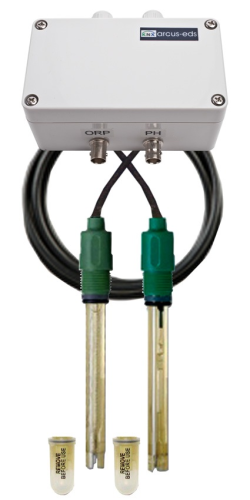

SK08-WAQ-MES Waterquality

Hover over image to zoom

  • Image 1
Arcus
£470.18 (inc VAT) £391.82 (exc VAT)
SKU:
30802001
Weight:
0.60 KGS
Availability:
Usually ships in 5 - 10 working days

 Product Description

The KNX Sensor SK08-WAQ water quality is a sensor / controller from the S8 device series for detection and control of the following values: pH-value, redox potential, and water temperature.

The sensor / controller has two extemely high-resistant inputs to connect combination electrodes for pH-value and redox potential. The inputs are galvanically isolated from the KNX bus so that no ground loops can occur. In addition, there are two potential-free contact inputs available. Electrodes of a variety of manufacturers can be used for different applications. As an accessory, Arcus-EDS offers a set of electrodes produced by the manufacturing company Hanna that is suitable for general applications.

The device has an integrated KNX bus coupler and does not require additional voltage.

The transducer is located in a high-strength, extremely robust stable impact ABS plastic housing. Cover and base have a revolving groove and tongue system with neoprene gasket. The housing is IP54/65.

In the application software, there are different controllers available for the measurement values “pH-value“ and “redox potential“: two-point or PI controllers with steady or pulsed outputs.

Further functions are included, such as the upper and lower limits as well as an auxiliary object for each limit. These can be switched to the setpoint values or to the limits. The sensor registers the runtime since the last calibration. It can be used as alarm function when the limit is exceeded. The calibration of the probes is carried out via the KNX bus and by using two calibration objects. Setting the pH-value probe is usually carried out as 2-point calibration, and the redox potential as 1-point calibration.

The sensor is configured with ETS ( KNX Tool Software ) and the application program. Controlling functions such as signal threshold and diverse adjustments are set using ETS ( KNX Tool Software ).

Applications

- Monitoring the water quality in aquariums, swimming pools, ponds and service water systems
- Controlling sanitizing systems

Technical Details

Measured Data:

pH value ( concentration of hydrogen ion )

ORP ( redox potential)

Operating time in hours

Sending Options: no sending, cyclical sending when change occurs
Parameter: Cyclical sending with variable periods, sending when change occurs with hysteresis
Object type ph: 1-Byte unsigned, 2-Byte float, 4-Byte float
Object type ORP: 2-Byte signed, 2-Byte float, 4-Byte float
Object type Laufzeit: 2-Byte unsigned
Object type Wassertemperatur: 1-Byte signed, 2 Byte signed, 2 Byte-float, 4 Byte-float
Object type Kontakteingänge: 1-Bit bool
Controller Modi:

Steady PI controller

Switched PI controller (PWM)

Two-Position controller

Two-Position controller Pulsed

Parameter Steady PI controller: Setpoint, reset time, proportional factor, controller mode
Parameter Switched PI controller (PWM): Setpoint, reset time, proportional factor, controller, cycle duration, threshold pitch
Parameter Two-Position controller: Setpoint, differential gap, controller mode
Parameter Two-Position controller Pulsed: Setpoint, differential gap, controller mode , cycle duration, duty cycle
Lock Function: All controller parameterizable as enable or lock
Controller Variables Output:

depends on Controller Modi

1-Byte unsigned, 1-Bit Switch

Setpoint value send cyclical: None or 10-250 seconds, parameterizable
Limits: pH, ORP, operating time, water temperature: Lower limit, Upper limit
Auxiliary value: Setpoint, Upper limit or Lower limit
Bus power failure: Saving changed auxiliary quantities, parameterizable
Calibration:

pH 7 - Zero

pH X - Transconductance

ORP X - Transconductance

Operating Time - Reset

Ambient Temperature Electronic Measuring

Equipment Casing:

Operation: -20 .. +55 °C

Storage: -20 .. +85°C

Ambient Humidity: 0 .. 95% rH not condensating
Accuracy pH: ± 0,1
Resolution pH: ± 0,01
Accuracy OPR: ± 10mV
Resolution OPR: ± 1mV
Accuracy water temperature: ± 1°C
Resolution water temperature: ± 0,01°C
Operating Voltage: KNX bus voltage 21 .. 32VDC
Power Consumption: approx. 240mW ( at 24VDC )
Auxiliary Supply: not required
Bus Coupler: integrated
Start-up with ETS: ARC_S8.VD2 Product: S8-WAQ
Curcuit Points: KNX 2-pole clamps ( red / black )
Protection Class: IP54/65
Assembly Type Transducer: Assembly with 2 screws finery
Casing Transducer: ABS plastic grey
Casing Dimensions: ( 115 x 65 x 55 ) mm ( L x W x H )
Article number without sonde: 30801000
Article number with sonde: 30801001
Electrode Set:

Single-rod measuring cell, gel-filled, low-maintenance forstandard applications

pH: HI2114P-2

ORP: HI3214P-2

Electrode cable: 2m with BNC plug
Article number: 91110020
Temperature probe: PT1000 not included, please order separately



Downloads

Application Description
ETS File

Accessories

PT1000 Temperature Probes:
- Probe PT1000 - assembled for SK07 (9910107)
- Sleeve Probe PT1000
- Screw-In Probe PT1000
- Pipe Feed Probe PT1000
- Pendulum Room Probe PT1000 (90100050)
- Ceiling Mounted Probe PT1000 (90100012)
- Wall Mounted Probe PT1000 (in SK03 case)
- Outdoor / Damp Room Probe PT1000 (90100007)
- Feed / Surface Mounted Probe PT1000 (90100001)
- Pendulum Room Probe PT1000 (radiant heat)(90100051)
