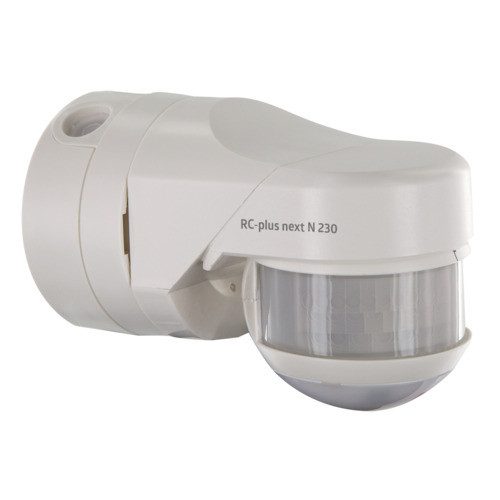

RC-plus next N 230°

Hover over image to zoom

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
  • Image 6
  • Image 7
B.E.G.
RRP: £145.20
£137.21 (inc VAT) £121.00 £114.34 (exc VAT) (You save £7.99)
SKU:
93331
Weight:
0.20 KGS
Availability:
5 - 10 Days Lead Time

 Product Description

- Motion detector with 230° detection area and anti-creep zone
- Mechanical range adjustment
- Different follow-up time depending on direction of movement
- Uninterrupted parallel circuit detection of several detectors
- Manual switching via push-button possible
- Adjustable ball head
- Immediate operation using factory settings
- Additional functions can be set up using the optional remote control.
- Socket compatibility with RC-plus (next) and Vario
- Faulty switching due to animals can be avoided by reducing the sensitivity
- Easy mounting thanks to plug base
- Wall, ceiling and corner mounting
- Factory settings 3 min and 20 lux

Application examples:
for narrow premises, walkways, gateways

Technical Details

Voltage: 110 - 240 V AC 50 / 60 Hz
Dimensions: 121 x 71 x 85 mm
Power consumption: approx. 0.5 W
Detection area:

horizontal 230°

Range:

max. 20 m across

max. 6 m towards

max. 4 m anti-creep protection

Monitored area (tangential movement): 400 m² / 2.5 m mounting height
Mounting height min./max./recommended: 2 m / 5 m / 2.5 m
Degree / class of protection: IP54 / Class II
Ambient temperature: -25 °C to +50 °C
Housing: Polycarbonate, UV-resistant
Channel 1 (lighting control)
Switching power: 3000 W, cos φ = 1
1500 VA, cos φ = 0.5
300 W LED
max. inrush current Ip (20 ms) = 165 A
max. inrush current Ip (200 µs) = 800 A
Type of contact: µ-contact, NO contact with tungsten pre-make contact
Follow-up time: 15 sec - 16 min, Pulse
Switch-on threshold: 2 - 2000 Lux



Downloads

Datasheet
Manual

Accessories

- IR-Adapter for Smartphones - 92726
- IR-RC - 92000
- IR-RC-LD - 92649
- IR-RC-Mini - 92090
- Wire basket BSK (Ø 164 x 143 mm) - 92467
- RC-Arc extinction kit - 10880
- Mini-RC-Arc extinction kit - 10882
- Outside corner socket RC-plus next white - 97004
- Outside corner socket RC-plus next brown - 97014
- Outside corner socket RC-plus next black - 97024
- Outside corner socket RC-plus next silver - 97043
- Inside corner socket RC-plus next - 97005
