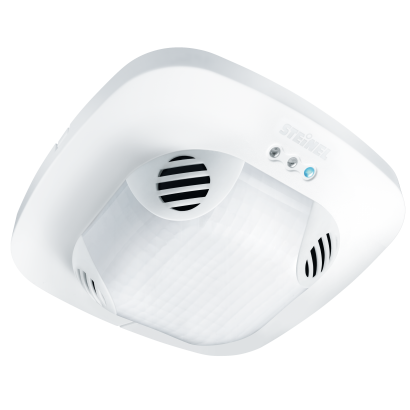

Presence Detector DualTech
Hover over image to zoom
Steinel
Product Description
The best of both worlds. Combined in one detector. Ultrasonic presence detector DualTech, ideal for offices, conference rooms and class rooms. 36 sq.m. presence zone, ultrasonic technology provides reliable detection behind objects regardless of temperature, additional detection capability with PIR technology, electronic adjustment for ultrasonic reach, COM1 for switching light ON and OFF.
The best of both worlds. Combined in one detector.
Offices, conference rooms and classrooms come with their own particular spatial situations that don't exactly make it easy to provide efficient lighting control. That's why we have developed an innovative 360° detector with a 28 m². presence detection zone that uses the best qualities of two leading technologies. This way, the DualTech can also detect movements by ultrasound without visual contact with the sensor. PIR technology provides additional detection capabilities. And maximum reliability.
The product can be purchased in the following version:
Version | Description |
| COM1 | Switching light |
| COM2 | Switching light and HVAC |
| KNX | Can be purchased here: link |
| DALI-2 | Input device for connecting to DALI light management systems |
| LiveLink | For connecting to the LiveLink light management system |
Technical Specifications
| Type: | Presence Detector |
| Dimensions (L x W x H): | 120 x 120 x 68 mm |
| Sensor Technology: | Ultrasonic |
| Application, place: | Indoors |
| Type of installation: | Concealed wiring |
| Ultrasonic technology: | 40 kHz |
| Electronic scalability: | Yes |
| Mechanical scalability: | No |
| Mounting height: | 2.50 – 3.50 m |
| Optimum mounting height: | 2.8 m |
| Detection angle: | 360 ° |
| Sneak-by guard: | Yes |
| Reach, radial: | Ultrasonic: Ø 10 m (79 m²) |
| Reach, tangential: | Ultrasonic: Ø 10 m (79 m²) |
| Reach, presence: | Ultrasonic: Ø 6 m (28 m²) |
| Sensor Technology 2: | Passive Infrared |
| Reach, radial 2: | passive infrared: Ø 4 m (13 m²) |
| Reach, tangential 2: | passive infrared: Ø 8 m (50 m²) |
| Reach, presence 2: | passive infrared: Ø 4 m (13 m²) |
| Twilight setting TEACH: | Yes |
| Twilight setting: | 10 – 1000 lx |
| Time setting: | 30 s – 30 min |
| Interconnection: | Yes |
| IP rating: | IP20 |
| Ambient temperature: | -25 – 55 °C |
| Manufacturer's Warranty: | 5 years |
