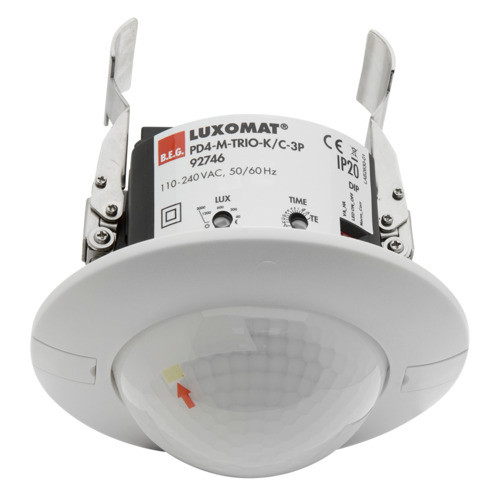

PD4-M-TRIO-3P-C - 3-P detector for corridors
Hover over image to zoom
B.E.G.
Product Description
- One channel occupancy detector with two simultaneously working relay outputs enabling a division of the luminaires in two groups
- Switching channels close if operating voltage fails, the illumination is kept on as long as both phases are supplied with power
- Designed for corridors
- Version as master device
- Extension of the detection area with slave devices possible
- Manual switching via push-button possible
- Additional functions can be set up using the optional remote control.
- There are markings for adjusting the detector
Typical applications: Emergency power supply networks, e.g. in hospitals or data centres.
Technical Details
| Voltage: | 110 - 240 V AC 50 / 60 Hz |
| Dimensions: | Ø 117 x 100 mm
|
| Power consumption: | approx. 0.5 W |
| Detection area: | vertical 360° |
| Range: | max. Ø 40 m across max. Ø 20 m towards |
| Monitored area (tangential movement): | 250 m² / 2.5 m mounting height |
| Mounting height min./max./recommended: | 2.4 m / 2.6 m / 2.5 m |
| Degree / class of protection: | IP20 / Class II |
| Ambient temperature: | -25 °C to +50 °C |
| Housing: | Polycarbonate, UV-resistant |
| Switching power: | |
| 2300 W, cos φ = 1 | |
| 1150 VA, cos φ = 0.5 | |
| 300 W LED | |
| Type of contact: | 2x µ-contact, dry Contact NC with tungsten pre-make contact |
| Follow-up time: | 15 sec - 30 min, Pulse |
| Brightness set value: | 10 - 2000 Lux Mixed light measuring |
Downloads
Accessories
- IR-Adapter for Smartphones - black - 92726
- IR-PD-1C - 92520
- IR-PD-1C-E - 92077
- IR-PD-Mini - 92159
- Wire basket BSK (Ø 200 x 90 mm) - white - 92199
- Socle IP54 PD4-TRIO-SM - white - 92386
