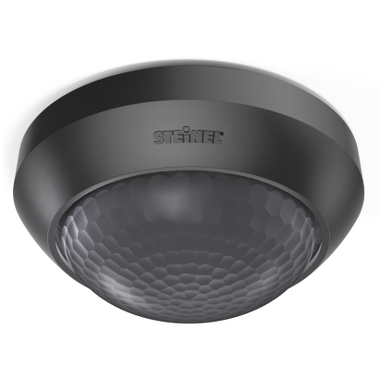

Motion Detector IS 360-3

Hover over image to zoom

  • Image 1
  • Image 2
Steinel
£93.23 (inc VAT) £77.69 (exc VAT)
Weight:
0.30 KGS
Availability:
Usually ships in 5 working days

 Product Description

The multi-talent for indoors and outdoors. Infrared wall sensor IS 360-3, ideal for mounting under soffits, in carports, on large building facades and driveways, 3 pyro sensors for a 360° angle of coverage, reach can be set up to 12 m, selectable time and twilight threshold, detection zone can be customised with shrouds.

The multi-talent for indoors and outdoors.

The infrared ceiling sensor that satisfies all demands and is really simple to install. Simply genius: sophisticated technology that is installed and configured in just a few steps thanks to a clever installation concept. Thanks to its three pyro sensors, the infrared surface-mounted sensor has an impressive 360° angle of coverage and a range of up to 12 m. The detection zone can be set to any requirement by fitting shrouds. The IS 360-3 is available in black and white.

Technical Specifications

Dimensions (Ø x H): 121 x 57 mm
Mains power supply: 220 – 240 V , 50 / 60 Hz
Sensor Technology: Passive infrared
Application, place: Indoors, outdoors
Type of installation: Surface wiring
Switching zones: 972
Optimum mounting height: 2.8 m
Detection angle: 360 °
Sneak-by guard: Yes
Capability of masking out individual segments: Yes
Reach, tangential: Ø 24 m (452 m²)
Twilight setting TEACH: No
Twilight setting: 2 – 1000 lx
Time setting: 5 s – 15 min
Switching output 1, resistive: 2000 W
Switching output 1, number of LEDs / fluorescent lamps: 8 pcs
Interconnection: Yes
IP rating: IP54
Ambient temperature: -20 – 50 °C
Manufacturer's Warranty: 3 years
