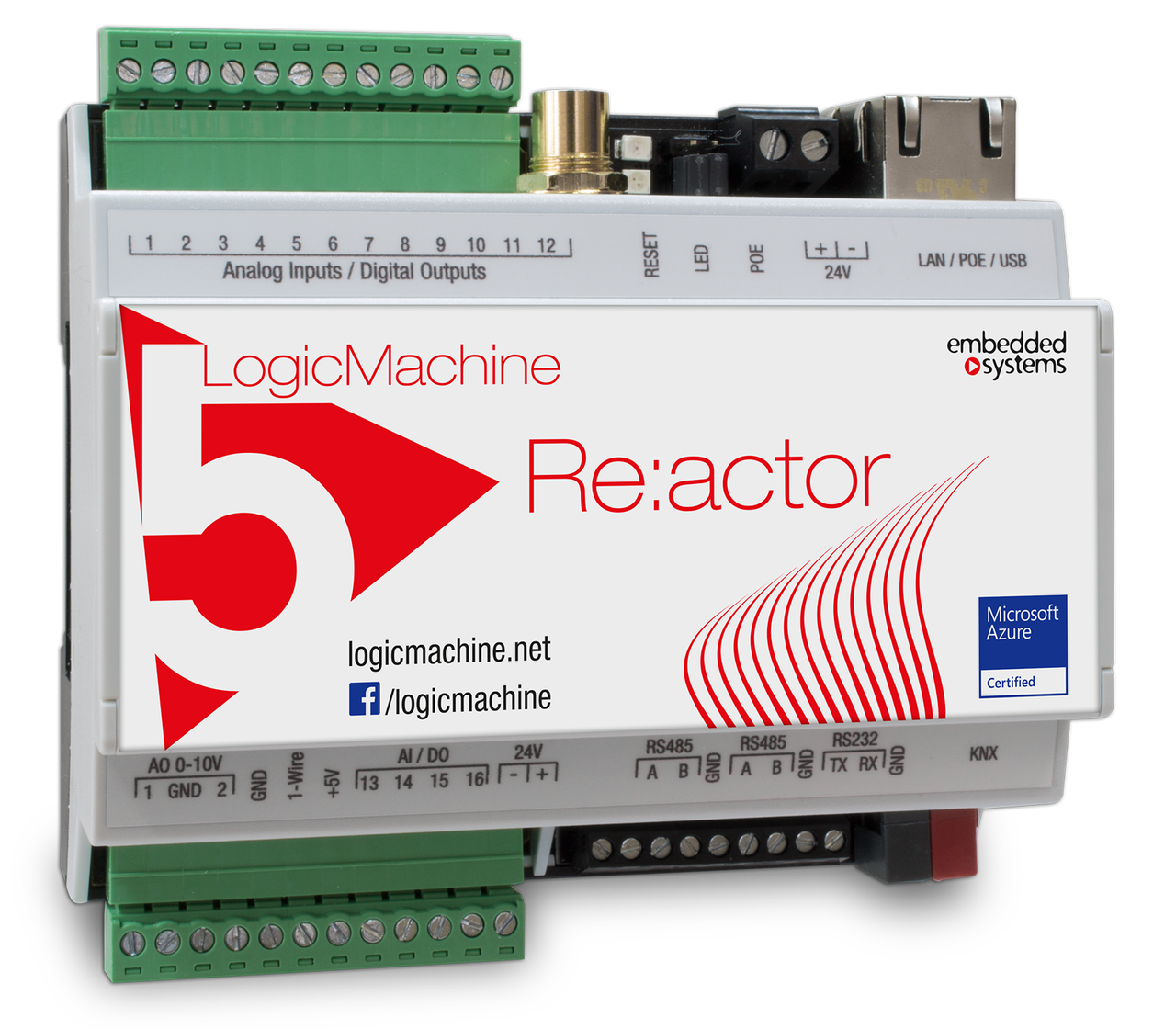

LM5p2-RIO2 - LogicMachine5 Reactor IO V2 Power with KNX/EIB

Hover over image to zoom

  • Image 1
  • Image 2
Embedded Systems
On Request
SKU:
LM5p2-RIO2
Weight:
0.30 KGS
Availability:
5 - 10 Days Lead Time

 Product Description

LogicMachine5 Reactor IO v2 is all-in-one cross-standard controller uniting in one device gateway functionality, cloud service integration, complex network logic engine, easy-to create visualization platform, IP Router, I/Os and much more. Further, LM5 supports iOS Siri and Google Voice control via native apps available in App Store and Google Play.

LogicMachine5 Reactor IO v2 consists of LogicMachine5 Lite and IO extension module. v2 differs from initial v1 with possibility to use inputs for pulse metering.

I/O specification:

- 1 x RS485
- 1 x RS485/RS-232 (switchable in software)
- 1 x USB2.0
- 1 x 10/100 Ethernet with passive PoE support
- 1 x KNX TP1 (TP-UART2 physical layer IC)
- 16 x Programmable Analog inputs or Digital outputs (with pulse meter)
- 2 x 0-10V analog outputs
- 1 x 1-Wire

Hightlights

- 18 I/O ports
- LM5 Reactor IO v2 has built-in KNX TP1, two serial interfaces
- Power-over-Ethernet powering
- Application development and application store
- Cloud ready device with Microsoft Azure, Amazon Web Services and other services supported
- Gateway and uniform way of control of KNX, ModBus RTU/TCP, BACnet IP, DMX, M-Bus, GSM and more
- Unlimited scenario and logic engine
- Unlimited visualization platform for PC and for touch devices
- Size: 6 DIN units
- Remote KNX bus control and KNX device reprogramming
- Object logging with trends support and data exporting to external servers
- iOS Siri and Google Voice control supported via native apps
- Optional 3x more powerful CPU than all previous LogicMachine versions

LogicMachine5 Comparison Table (PDF)

Online Presentation of Core Functionality (Link)

Technical Details

Power supply: 2 x 24V DC on terminal connectors (1 for LM powering, 1 for external relay powering) or 24V DC Passive Power-over-Ethernet
Power consummation: 1.3W
Interface:


1x KNX/EIB TP1
1x 10BaseT/100BaseTX
1x RS-485
1x RS-485/RS-232 (switchable in software – full-duplex=RS232,half-duplex=RS485)
1x USB2.0
16x Analog input/Digital output 16 (Configurable). 380 mA continues current on output. Optoislated from KNX/EIB bus. Additional 24V power source is supported.
2x Analog outputs (0-10V, 12bit resolution,20mA max current)
1x 1-Wire

Connections:


KNX bus Bus Connection Terminal, 0.8mm2
Power supply Screw, 1.5mm2
Serial Screw, 1 mm2
I/O Screw, 1 mm2
1-Wire Screw, 1.5 mm2

Operating elements: CPU Load LED, Activity LED
Enclosure: Polyamide
Color: Gray
Dimensions: 61(W)x90(H)x108(L) mm
Usage temperature: 0C ... +45C
Storage temperature: -15C ... +55C
Weight: 150g
Warranty: 2 years
Relative Humidity: 10...95 % without condensation
