LM5p2-DW1 - LogicMachine5 Power with KNX TP1

Hover over image to zoom

  • Image 1
  • Image 2
Embedded Systems
On Request
SKU:
LM5p2-DW1
Weight:
0.30 KGS
Availability:
5 - 10 Days Lead Time

 Product Description

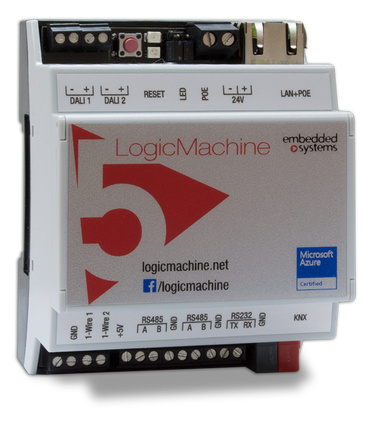

LogicMachine5 Power brings redundancy and maintenance possibilities of your installation to another level.

LM5 Power is an embedded platform with integrated Ethernet, USB, KNX/EIB, DALI, 1-Wire, Serial interfaces. LM allows to use it as cross-standard gateway, logic engine, visualization platform, IP Router. Scripting templates provides user-friendly, flexible configuration interface and integration with cloud/web services, 3rd party devices. Via applying custom scripts LM can simultaneously act as thermostat, security panel, lighting controller, etc. LogicMachine application store and external app development possibility allows to extend device functionality and adjust to a specific market segment.

I/O specification:

- 1 x RS485
- 1 x RS485/RS-232 (switchable in software)
- 1 x 10/100 Ethernet with passive PoE support
- 1 x KNX TP1 (TP-UART2 physical layer IC)
- 2 x DALI masters (total up to 128 DALI ballasts supported)
- 2 x 1-Wire
- 1 x USB2.0

Hightlights

- Power-over-Ethernet powering
- Automatic Ethernet connection checking and informing in case of troubles
- Application development and application store
- Cloud ready device with Microsoft Azure, Amazon Web Services and other services supported
- Gateway and uniform way of control of KNX, ModBus RTU/TCP, BACnet IP, DALI, 1-Wire, DMX, M-Bus, GSM and more
- Unlimited scenario and logic engine
- Unlimited visualization platform for PC and for touch devices
- Size: 4 DIN units
- Remote KNX bus control and KNX device reprogramming
- Object logging with trends support and data exporting to external servers
- 3x more powerful CPU than all previous LogicMachine versions.

LogicMachine5 Comparison Table (PDF)

Online Presentation of Core Functionality (Link)

Technical Details

Power supply: 12V-30V DC on terminal connectors or 12V-30V DC Passive Power-over-Ethernet
Power consummation: 1.3 W
Interface:


- 1x KNX/EIB TP1
- 1x 10BaseT/100BaseTX
- 1x RS-485
- 1x RS-485/RS-232 (switchable in software – full-duplex=RS232, half-duplex=RS485)
- 2x DALI master (up to DALI 128 ballasts in total)
- 2x 1-wire

Connections:


KNX bus: Bus Connection Terminal 0.8mm2
Power supply: Screw, 1.5 mm2
Serial: Screw, 1 mm2
DALI: Screw, 1 mm2
1-wire: Screw, 1 mm2

Operating elements: CPU Load LED, Activity LED
Enclosure:

Material: Polyamide
Color: Gray

Dimensions: 71(W)x90(H)x61(L) mm
Usage temperature: 0C ... +45C
Storage temperature: -15C ... +55C
Weight: 119g
Warranty: 2 years
Relative Humidity: 10...93 % without condensation
