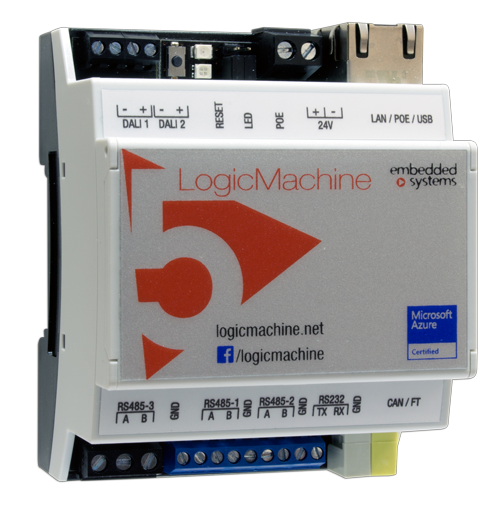

LM5Cp2-DR - LogicMachine5 Power CANx with CAN FT | ModBus | BACnet

Hover over image to zoom

  • Image 1
Embedded Systems
Price on request
SKU:
LM5Cp2-DR
Weight:
0.25 KGS
Availability:
5 - 10 Days Lead Time

 Product Description

LogicMachine5 Power brings redundancy and maintenance possibilities of your installation to another level.

LM5 Power is an embedded platform with integrated Ethernet, USB, CAN FT, DALI, Serial interfaces. LM allows to use it as cross-standard gateway, logic engine, visualization platform, IP Router. Scripting templates provides user-friendly, flexible configuration interface and integration with cloud/web services, 3rd party devices. Via applying custom scripts LM can simultaneously act as thermostat, security panel, lighting controller, etc. LogicMachine application store and external app development possibility allows to extend device functionality and adjust to a specific market segment. Further, LM5 supports iOS Siri and Google Voice control via native apps available in App Store and Google Play.

Highlights

- Power-over-Ethernet powering
- Automatic Ethernet connection checking and informing in case of troubles
- Application development and application store
- Cloud ready device with Microsoft Azure, Amazon Web Services and other services supported
- Gateway and uniform way of control of CAN FT, KNX IP, ModBus RTU/TCP, BACnet IP, DALI, 1-Wire, DMX, M-Bus, GSM and more
- Unlimited scenario and logic engine
- Unlimited visualization platform for PC and for touch devices
- Size: 4 DIN units
- Object logging with trends support and data exporting to external servers
- iOS Siri and Google Voice control supported via native apps

I/O Specification

2 x RS485
1 x RS485/RS-232 (switchable in software)
1 x 10/100 Ethernet with passive PoE support
1 x CAN FT
2 x DALI masters (total up to 128 DALI ballasts supported)
1 x USB2.0

Technical Details

Power supply 12-32V DC terminal connector or Passive PoE
Power consumption (at 24V) 1.3 W
DC overvoltage protection 50 V
Wrong wiring polarity protection Yes
Interfaces & Operating Elements
CAN FT 1
DALI master 2
Maximum count of ballasts per device 128
10BaseT/100BaseTX 1
RS-485 2
RS-485/RS-232 1 – CPU load, 1 - Activity
USB2.0 1
Programming/reset button 1
Reset button 1
Clamps & Enclosure
CAN FT Terminal 0.8mm2
Power supply 5 mm2
Serial / DALI 3.5 mm2
Color Gray
Dimensions 71(W)x90(H)x61(L) mm
Protection IP20 according to EN 60529
Usage temperature 0C ... +45C
Storage temperature -15C ... +55C
Net weight 119 g



Downloads

Datasheet
Manual
