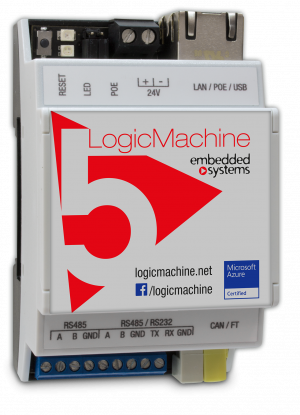

LM5CLp2 - LogicMachine5 Lite Power CANx with CAN FT | ModBus | BacNet | KNXnet/IP

Hover over image to zoom

  • Image 1
Embedded Systems
Price on request
SKU:
LM5CLp2
Weight:
0.20 KGS
Availability:
5 - 10 Days Lead Time

 Product Description

LogicMachine5 Lite acts as cross-standard gateway, cloud service integrator, complex network logic engine, easy-to create visualization platform, IP Router and much more. Further, LM5 supports iOS Siri and Google Voice control via native apps available in App Store and Google Play. The device has its own app store including apps for CANx device commissioning and monitoring.

Highlights

- Power-over-Ethernet powering
- Automatic Ethernet connection checking and informing in case of troubles
- Application development and application store
- Cloud ready device with Microsoft Azure, Amazon Web Services and other services supported
- Gateway and uniform way of control of CAN FT, KNX IP, ModBus RTU/TCP, BACnet IP, DMX, M-Bus, GSM and more
- Unlimited scenario and logic engine
- Unlimited visualization platform for PC and for touch devices
- Size: 3 DIN units
- Object logging with trends support and data exporting to external servers
- iOS Siri and Google Voice control supported via native apps

I/O Specification

1 x RS485
1 x RS485/RS-232 (switchable in software)
1 x USB2.0 (starting from 9.2016)
1 x 10/100 Ethernet with passive PoE support
1 x CAN FT
1 x USB2.0

Technical Details

Power supply 12-32V DC terminal connector or Passive PoE
Power consumption (at 24V) 1.3 W
DC overvoltage protection 50 V
Wrong wiring polarity protection Yes
CAN FT 1
10BaseT/100BaseTX 1
RS-485 1
RS-485/RS-232 1 – CPU load, 1 - Activity
USB2.0 1
Programming/reset button 1
Reset button 1
Clamps & Enclosure
CAN FT Terminal 0.8mm2
Power supply 5 mm2
Serial 3.5 mm2
Color Gray
Dimensions 52(W)x90(H)x51(L) mm
Protection IP20 according to EN 60529
Usage temperature 0C ... +45C
Storage temperature -15C ... +55C
Net weight 97 g



Downloads

Datasheet
Manual
