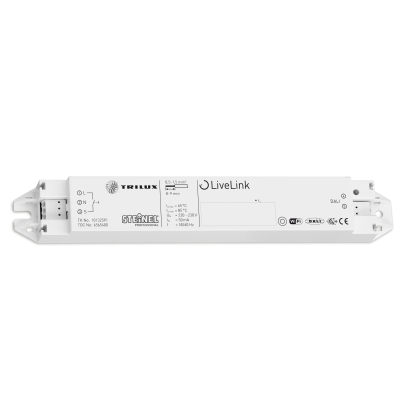

The heart of the light management system. LiveLink control device with a compact installed depth of only 21 mm, universal DALI interface for controlling and supplying up to 16 light groups and 64 individual components, direct connection for 1 switch, control via tablet, smartphone or switch, security from autonomously encrypted Wi-Fi network, configuration saved even in the event of a power cut.

LiveLink is the control device developed by STEINEL PROFESSIONAL in cooperation with TRILUX. This gives the electrician access to the entire LiveLink system. The control device and the tablet or smartphone communicate via an autonomously encrypted Wi-Fi network. This protects the device from external access. By virtue of its compact design with an installed depth of only 21 mm, the control device can also be neatly installed in low suspended ceilings. The universal DALI interface permits the integration of DALI-capable lights, sensors and switches (16 light groups or up to 64 individual components). These can either be controlled by means of a commercial-grade switch or from a tablet or smartphone using the LiveLink app. Further switches can be integrated into the DALI control circuit via the LiveLink DALI switch coupler and configured with lighting scenarios. System configurations are saved directly in the control device. This means that after a power cut there is no need for any re-programming and the light management system is immediately fully functional again.

Technical Specifications

Downloads

Operating instructions
