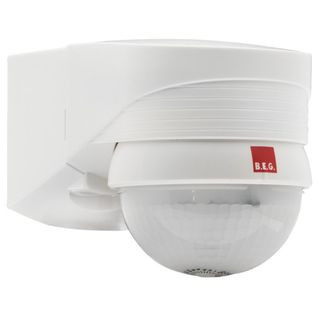

LC-plus 280
Hover over image to zoom
B.E.G.
RRP:
£114.00
£107.74 (inc VAT) £95.00 £89.78 (exc VAT)
(You save £6.26)
SKU:
91008
Weight:
0.20 KGS
Availability:
5 - 10 Days Lead Time
Product Description
- Motion detector with downward detection for gapless monitoring
- Adjustable ball head
- Additional functions can be set up using the optional remote control
- Easy mounting thanks to plug base
- Detection area can be restricted with blinds
- Special socket for external corner mounting included
- Factory settings 3 min and 20 lux
Application examples:
monitoring of two sides of a building, entrances, garage entrances, property entrances.
Technical Details
| Voltage: | 110 - 240 V AC 50 / 60 Hz |
| Dimensions: | 110 x 68 x 78 mm |
| Power consumption: | approx. 0.24 W |
| Detection area: | horizontal 280° |
| Range: | max. 16 m across max. 9 m towards |
| Monitored area (tangential movement): | 313 m² / 2.5 m mounting height |
| Mounting height min./max./recommended: | 2 m / 3 m / 2.5 m |
| Degree / class of protection: | IP54 / Class II |
| Ambient temperature: | -25 °C to +50 °C |
| Housing: | Polycarbonate, UV-resistant |
| Channel 1 (lighting control) | |
| Switching power: | 2000 W, cos φ = 1 |
| 1000 VA, cos φ = 0.5 | |
| 300 W LED | |
| Type of contact: | µ-contact, 1 x NO contact |
| Follow-up time: | 15 sec - 16 min, Pulse |
| Switch-on threshold: | 2 - 2500 Lux |
Downloads
Accessories
- IR-Adapter for Smartphones - 92726
- IR-LC-plus - 92095
- IR-LC-Mini - 92093
- Wire basket BSK (Ø 164 x 143 mm) - 92467
- RC-Arc extinction kit - 10880
- Mini-RC-Arc extinction kit - 10882
