KNX Quick Switching Actuators 16A C load 200μF

Hover over image to zoom

  • switching actuator 2-gang
  • switching actuator 4-gang
  • switching actuator 6-gang
  • switching actuator 9-gang
Lingg & Janke
£125.90 (inc VAT) £104.92 (exc VAT)
Weight:
0.20 KGS
Availability:
Usually ships in 5 - 10 working days

 Product Description

The quick-series of switching actuators are suited for high loads, including capacitive loads with high inrush currents ( c-load ). The maximum load for each channel is 16A at 250V AC. Each channel may be used with a separate phase. Programming the devices is usually done with the rotary-encoder switches. Whenever needed, programming via the ETS is possible, like any other standard KNX device.

- 2, 4, 6 or 9 channels

- Switching capacity 16 A at 250 V AC

- Suitable for C-load

- 3,4,6 or 9-rail unit

Overview

Designation

Type

Size (Mod)

Order-no.

ETS DB File

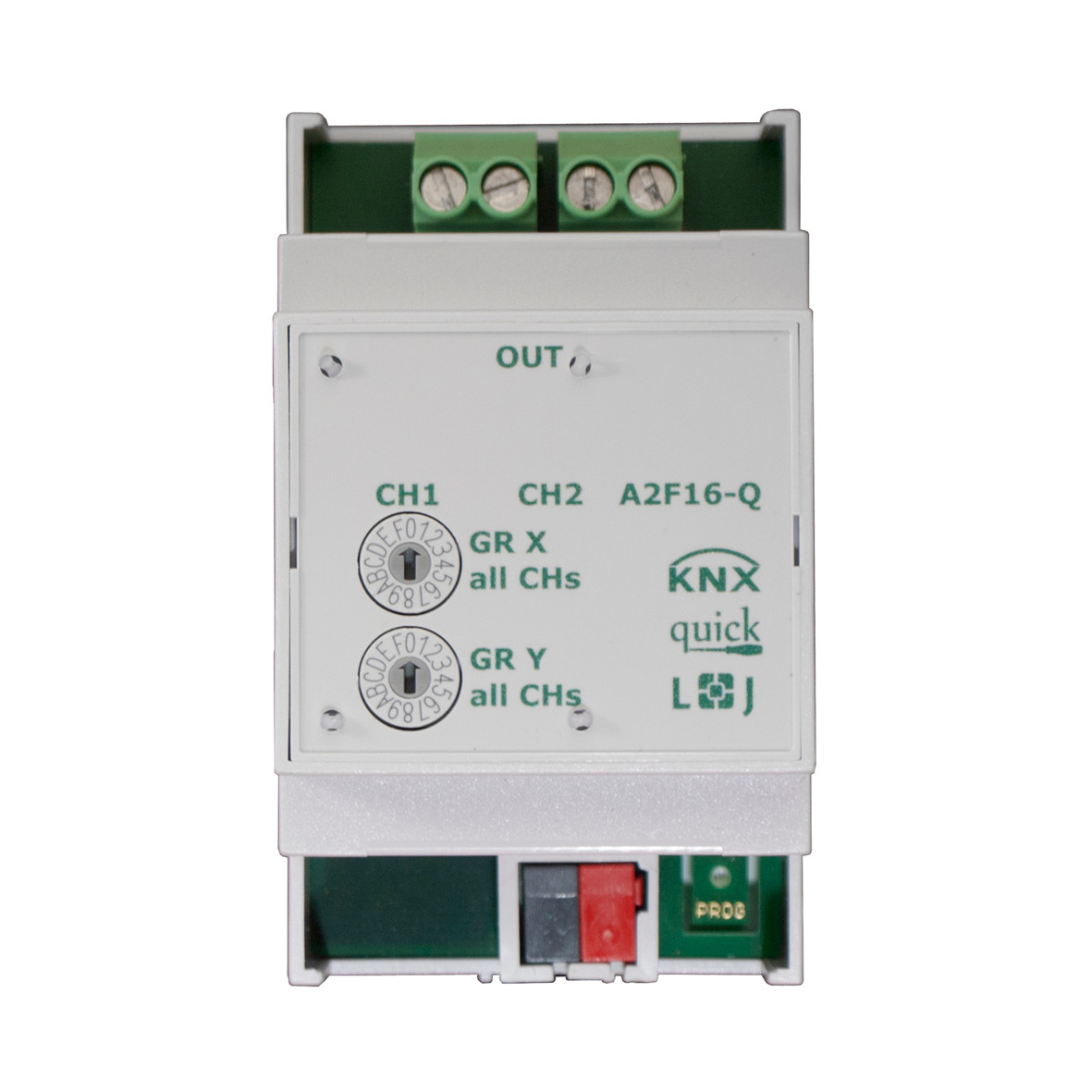

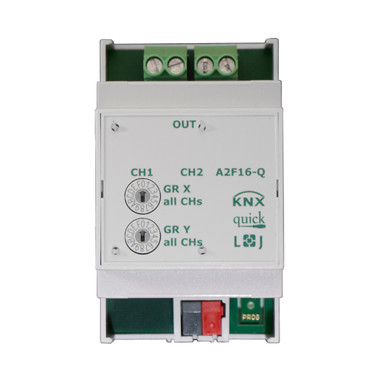

switching actuator 2-gang

A2F16-Q

3

Q79231

Link

switching actuator 4-gang

A4F16-Q

4

Q79232

Link

switching actuator 6-gang

A6F16-Q

6

Q79234

Link

switching actuator 9-gang

A9F16-Q

9

Q79235

Link



Technical Details

Max. Group Addresses:

96

Power Supply:

24V DC via KNX

Auxillary Power Supply:

Not Necessary

Protection Class:

IP 20

Dimensions:

A2F16-Q 53 x 90 x 60 (3 RU)

A4F16-Q 71 x 90 x 60 (4 RU)

A6F16-Q 106 x 90 x 60 (6 RU)

A9F16-Q 159 x 90 x 60 (9 RU)

Installation:

35mm DIN rail

Mechanical Life-cycle:

106 Switching Operations

Operating Temperature:

-5 ... +40°C

Rated Load per Contact:

16A / 250V 50..60Hz

Maximum Power per Contact:

The total load must not cause overheating of the device!

Incandescent lamp load 3680W
Fluorescent lamp load:
      - compensated 3680 W
      - uncomp. ( C max 200uF ) 2500 W
Low volt. halogen with transf. 2000W



Downloads

KNX quick at a glance
Datasheet
