KNX Modbus RTU Gateway 886

Hover over image to zoom

  • Image 1
Weinzierl
£375.84 (inc VAT) £313.20 (exc VAT)
SKU:
5256
Weight:
0.20 KGS
Availability:
5 - 10 Days Lead Time

 Product Description

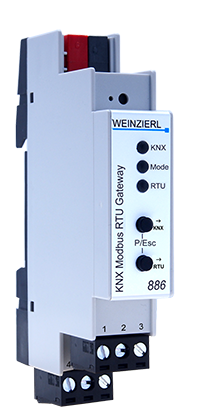

The KNX Modbus RTU Gateway 886 is a compact KNX/Modbus gateway with 250 freely configurable channels (KNX data points). The device allows easy integration of Modbus devices supporting the RTU protocol via RS-485 into KNX installations. It can be used as Modbus master or slave.

Overview

The assignment between KNX objects and Modbus registers is made via parameters in the ETS - no further tool is required. The configuration can also be exported and imported via a DCA (Device Configuration App, SW extension in the ETS).

ETS Screenshot

The device enables the interpretation and scaling of the Modbus data according to the data point types of the KNX standard.

Two buttons and three multi-colored LEDs on the front panel allow local operation (test functions) and visualization of the device status. The Modbus connection is electrically isolated from the KNX bus. All connections are pluggable.

Weinzierl Modbus Gateway Config Tool

Configuration Tool

The Weinzierl Modbus Gateway Config Tool is a so-called DCA (Device Configuration AddIn) for the ETS. With this it is possible to export the configuration of a Weinzierl KNX Modbus RTU Gateway 886 database and import it into another gateway. The Weinzierl Modbus Gateway Config Tool is available online as a free download in the KNX Association online store under Shop / ETS Apps (creating a user account is necessary).

After adding it to the shopping cart and checking it out, the download link for the Weinzierl Modbus Gateway Config Tool will appear within a short time under "My account / Products".You can also download it here directly.

Installation instructions and usage documentation are available here.

Please note: The Weinzierl Modbus Gateway Config Tool requires a commercial license of ETS 5.5 or higher.

Technical Details

Mechanical Data
Housing plastic
DIN rail mounted device
Width 18 mm
Controls & Indicators
2 buttons and 3 LEDs, multicolor
KNX programming button with LED (RD)
Modbus
Type RTU
RS-485 Speed 1.2/2.4/4.8/9.6/19.2/38.4/56.0/115.200 kBit/s
Mode Master or Slave
Master up to 25 slave devices
Up to 250 channels
Power Supply
KNX Bus approx. 4 mA
Modbus auxiliary supply 12-24 V⎓, 5 mA
Connectors
Connector for KNX Bus (red / black)
Pluggable screw connector (3 poles) for Modbus
Pluggable screw connector (3 poles) for power supply
