KNX IO 510

Hover over image to zoom

  • Image 1
Weinzierl
£105.84 (inc VAT) £88.20 (exc VAT)
SKU:
5224
Weight:
0.05 KGS
Availability:
5 - 10 days lead time

 Product Description

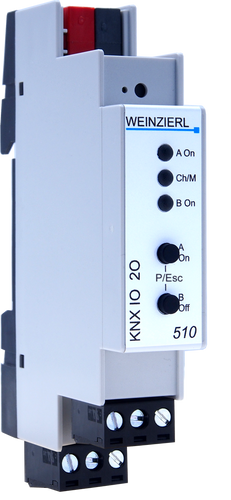

The KNX IO 510 (2O) is a compact switching actuator with 2 bi-stable relay outputs. The actuator provides the function for universal outputs including scene control, timer, staircase lightning and to control heating valves (PWM for thermoelectric valve drives).

Two push buttons and three LEDs allow a local operation and a visualization of the device state.
In addition to the output channels the device includes 16 independent functions for logic or timer control.

Technical Details

Mechanical Data:
-Housing: plastic
-DIN rail mounted device, width: 1 modules (18 mm)
-Weight: approx 50 g

User interface:
-two keys for on device settings
-three multi color LEDs
-KNX programming button with LED

KNX:
-Device Model System B
-Compatible with ETS 4.2 (or higher)

Connectors:
-Connector for KNX Bus (red / black)
-Pluggable screw connector (3 poles) for blind output
-Pluggable screw connector (3 poles) for binary input channel 1 and 2

Output channel (Actuator ):
-Relay type: 230V~/8A, bi-stable Depending on load type (capacitive or inductive) the switching power can be reduced significantly

Downloads

Data sheet
Manual
ETS File
