KNX-IMPZ2

Hover over image to zoom

  • Image 1
Arcus
£195.41 (inc VAT) £162.84 (exc VAT)
Weight:
0.14 KGS
Availability:
Usually ships in 5 - 10 working days

 Product Description

The Counter-Module KNX-IMPZ2 is used for remote reading and monitoring of metering data The module is suitable to detect measured values of heat-, water-, current- and gas meters with S0-Interface.

The IMPZ2 can be used as two independent counters or be used as one counter with scales switching.

The device has an integrated bus coupling unit and needs no auxiliary power.

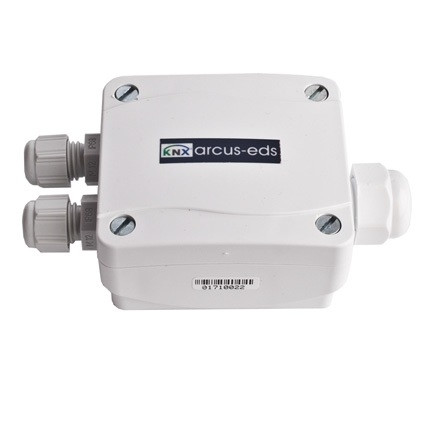

The Counter-Module KNX-IMPZ2-SK01 is delivered in an impact-resistant glass-ball reinforced plastic housing with seal and meet the protection class IP65.

The Counter-Modul KNX-IMPZ2-REG is suitable for DIN rail mountingand meet the IP20 degree of protection.

Functions

2 Independent Counter

- Meter reading(Channel 1/2)
- Flow(Channel 1/2)
- Reference value(Channel 1/2)
- Consumption value(Channel 1/2)
- Serial number(Channel 1/2)
- Limit alarm(Channel 1/2)
- Date and Time
- Last reference date
- Next reference date
- Consumption value reset
- Reset time
- Reset date

Counter with 2 Tariffs

- Meter reading ( Scale 1/2 )
- Flow
- Reference value (Scale 1/2 )
- Consumption value ( Scale 1/2 )
- Serial number
- Scale switching
- Limit alarm ( Scale 1/2 )
- Date and Time
- Last reference date
- Next reference date
- Consumption value reset
- Reset time
- Reset date

Technical Details

 Operating Voltage:  EIB/KNX bus voltage 21 .. 32 VDC
 Power Consumption:  ca. 240 mW ( at 24VDC )
 Auxiliary Supply:  Not required
 Bus Coupler:  Integrated
 Behaviour on bus voltage failure:  Modified auxiliary storage size is configurable
 Ambient temperature:  Storage: -20 .. +85 °C
 Operation: -20 .. +55 °C
 Start-up with ETS:  IMPZx.vd4
 Connections:  EIB-2-pole clamps ( red / black )

 Protection Class SK01:  IP65
 Assembly Type SK01:  Assembly with 2 screws finery
 Casing Type SK01:  Plastic housing grey
 Casing Dimensions SK01:  72 x 64 x 40 mm ( B x H x T )
 Article Number SK01:  60201201

 Protection Class REG:  IP20
 Assembly Type REG:  DIN rail mounting
 Casing Dimensions REG:  2 TE ( 35 mm )
 Article Number REG:  60201202



Downloads

Application Description
ETS ARC IMPZ (from serial number 1622020 (SK01) and 1631000 (REG))
ETS IMPZ DUO (up to serial number 1622019 (SK01) and 1630999 (REG))
ETS IMPZx (up to serial number 1622019 (SK01) and 1630999 (REG))
