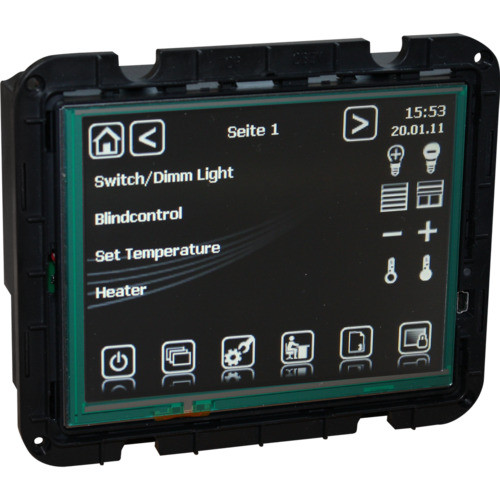

KNX Control Touch-Panel - 90120
Hover over image to zoom
B.E.G.
£1,291.51 (inc VAT) £1,076.26 (exc VAT)
SKU:
90120+90128+90137
Weight:
1.00 KGS
Availability:
5 - 10 Days Lead Time
Product Description
- Websites can be called up from the integrated web server via the TCP/IP network in order to display KNX statuses or to switch events
- Controllable via Smartphone or tablet PC
- Programming interfaces from the ETS to the KNX BUS
- Programmable via ETS3 and 4
- KNXnet/IP-secured tunnel connection
- Plastic housing, 4 widths units (DIN-rail, top hat)
- Connection: 12-30V AC/DC, network and KNX
- Pre-installed visualisation software
- Integrated web server
Price includes:
- KNX Control Touch-Panel (90120)
- Back Box - FM-Box grey (90128)
- Metal Frame - aluminium/silver (90137)
Technical Details
| Voltage: | 230 V AC 50 / 60 Hz |
| Dimensions: | 195 x 155 x 4 mm |
| Power consumption: | 11 W |
| Degree / class of protection: | IP20 / Class I |
| Ambient temperature: | 0 °C to +45 °C |
| Housing: | Plastic ABS Terez 32/19V0 |
| Display elements: | |
| LED red for displaying normal/adressing mode | |
| Graphic-compatible 5.7´´ TFT colour display 320 x 240 pixels with LED background illumination | |
| Manual operation: | Learn key for switching normal/addressing mode |
| Connections and wires: | Power: 3x 1.5 mm² (solid or stranded), Bus line: EIB/KNX, USB Mini Type B |
