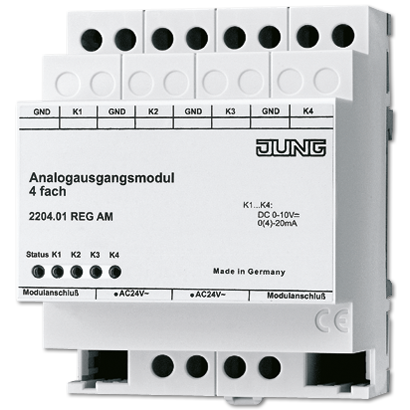

KNX Analogue Actuator Module 4-G - 2204.01 REGAM
Hover over image to zoom
Jung
£267.95 (inc VAT) £223.29 (exc VAT)
SKU:
2204.01REGAM
Weight:
0.20 KGS
Availability:
5 - 10 days lead time
Product Description
Rail mounting device, 4 rail units
Extension module for analogue actuator 4-gang ref.-no.: 2204.01 REGA
Function
- The analogue actuator module extends a KNX analogue actuator 4-gang by four additional sensor outputs.
- The analogue output extension module offers four analogue outputs which can be software parameterised for one of the following ranges.
- Outputs not used can be deactivated.
Voltage signals: 0 ... 1 V DC 0 ... 10 V DC
Current signals: 0 ... 20 mA DC 4 ... 20 mA DC
Technical Details
| Power supply | |
| Supply voltage: | AC 24 V ~ ± 10 % |
| Current consumption: | max. 120 mA |
| Current consumption at system connector: | 6 mA |
| Ambient temperature: | -5 ... +45 °C |
| Storage/transport temperature: | -25 ... +70 °C |
| Humidity | |
| Ambient/storage/transport: | max. 93 % r. h., no condensation |
| Mounting width: | 72 mm (4 rail units) |
| Weight: | approx. 155 g |
| Terminals | |
| Outputs, power supply: | screw terminals |
| single wire: | 0.5 ... 4 mm² |
| stranded without ferrule: | 72 mm (4 rail units) |
| stranded with ferrule: | 0.5 ... 2.5 mm² |
| Connection KNX device: | KNX bus connection block |
| Analogue outputs | |
| Number: | 4 |
| Ranges: | 0 ... 1 V DC, 0 ... 10 V DC, 0 ... 20 mA DC, 4 ... 20 mA, DC |
| Voltage signal load: | ≥ 1 kW |
| Current signal load: | ≤ 500 W |
