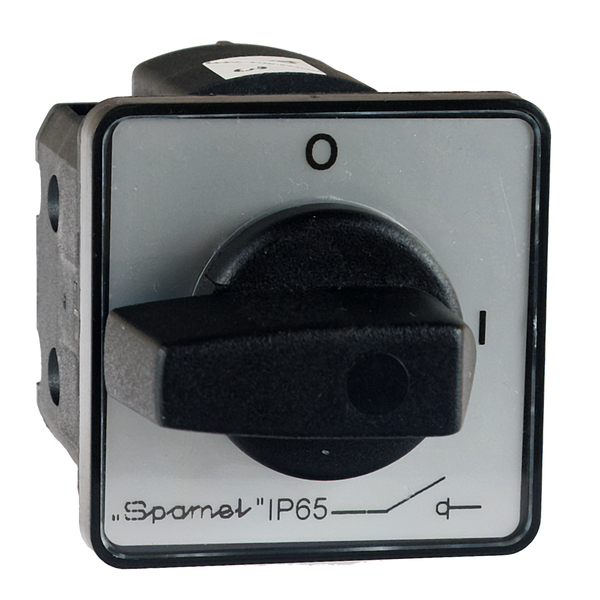

Front Panel Mounted Rotary CAM Switch 0-1 / 16A / IP65

Hover over image to zoom

  • Image 1
  • Image 2
£23.88 (inc VAT) £19.90 (exc VAT)
SKU:
SK16G-1.825\P03
Weight:
0.20 KGS
Availability:
In Stock / Next Day Delivery
Current Stock:
16

 Product Description

One-Pole (0-1) 16A front mounted rotary CAM switch for control panels.

IP65 rated.

4 screws mounting.

Technical Details

Rated insulation voltage Ue 690 V
Rated withstand impulse voltage Uimp 4 kV
Rated continuous current Iu=Ith 20 A
Rated operational current Ie for AC-21A, AC-22A 16 A (230/400/500/690 V)
Rated operational power Pe for AC-23A 3 kW (230 V)
  5 kW (400 V)
  6 kW (500 V)
  8 kW (690 V)
Rated operational power Pe for AC-3 2 kW (230 V)
  3.5 kW (400 V)
  4 kW (500 V)
  6 kW (690 V)
Rated operational current Ie for DC-21A 16 A (24 V)
  8 A (110 V)
  6 A (220 V)
Short-time short-circuit withstand current Icw(1s) 0.5 kA
Rated short-circuit making current Icm 0.7 kA
Rated conventional short-circuit current 10 kA
Rated current fuse link gG 16 A
Wire gauge 1,0...2,5 mm² (solid, stranded)
Tightening torque, terminals max 0.8 Nm
Panel mounting 31/36
Mechanical endurance 3.0 mln (transposition cycles)
