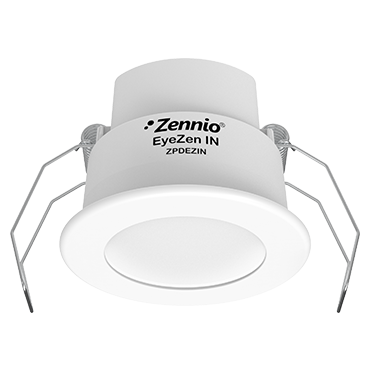

EyeZen IN - ZPDEZIN

Hover over image to zoom

  • Image 1
  • Image 2
Zennio
£61.20 (inc VAT) £51.00 (exc VAT)
Weight:
0.10 KGS
Availability:
5 - 10 Days Lead Time
Minimum Purchase:
1 unit(s)
Maximum Purchase:
100 unit(s)

 Product Description

The motion sensor with infrared detection technology is complemented by an integrated luminosity sensor, which makes the device even more useful. Directly connected to input of a Zennio device. Motion detection area can be increased by installing two sensors in parallel, to the same input. Easy installation and small size. It does not require any other type of connection or power supply.

* This accessory must be connected to an input of a Zennio device. To find out if a device is compatible with this accessory, consult the data sheet of the device in question.

FEATURES

- Supported by Zennio devices with built-in inputs
- Motion detection through PIR technology
- Detection diameter of up to 6m
- Lighting level sensor with human eye spectral sensitivity
- External dimensions: Ø58 x 41mm
- Internal dimensions: Ø48.3 x 41mm
- Cut dimensions: Ø51mm hole saw blade
- False-ceiling flush-mounted
- Conformity with the CE directives (CE-mark on its side)

Technical Details

GENERAL SPECIFICATIONS

CONCEPT DESCRIPTION
Type of device Electric operation control device
Operation temperature 0°C .. +45°C ¹
Storage temperature -20°C .. +55°C
Operation humidity 5 .. 95%
Storage humidity 5 .. 95%
Protection class III
Operation type Continuous operation
Device action type Type 1
Electrical stress period Long
Complementary characteristics Class B
Degree of protection IP20, clean environment
Installation Flush-mounted on false ceiling
Operation indicator The detection LED indicator blinks twice during initialization. Motion detection is notified by means of a flash of this LED (considering that LED ON/OFF microswitch is in ON position).
Weight 38g
PCB CTI index 175V
Housing material PC/ABS FR V0 halogen free housing and HDPE lens.

ZENNIO DEVICE INPUT SPECIFICATIONS AND CONNECTIONS

CONCEPT DESCRIPTION
Connection to Zennio device input - Voltage 3.3 V
Connection to Zennio device input - Current Up to 9mA (depending on the surrounding and setting conditions).
Connection method Pluggable screw terminal block
Maximum cable length 30m
Cable cross-section 0.2-1mm² (IEC) / 26-16AWG (UL)
