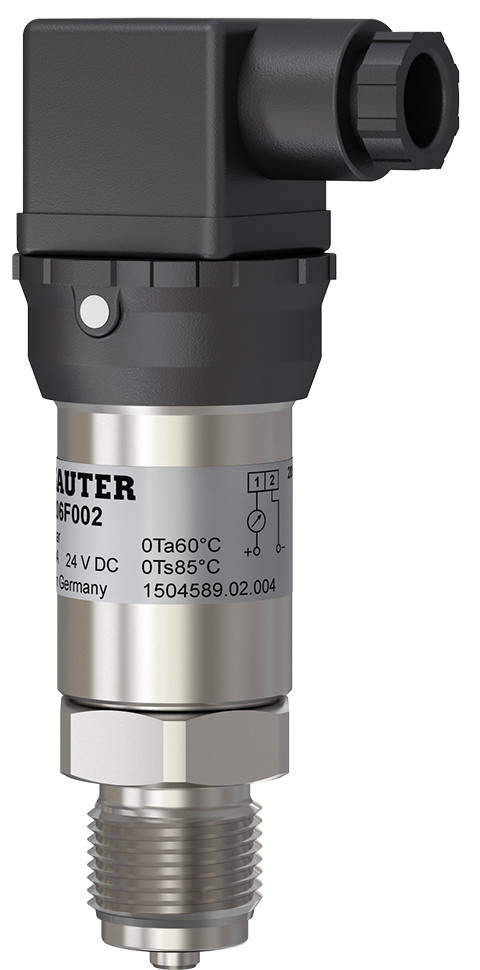

DSU/DSI Pressure Transmitter

Hover over image to zoom

  • Image 1
SAUTER
£260.30 (inc VAT) £216.92 (exc VAT)
Weight:
0.30 KGS
Availability:
5 days lead time

 Product Description

Simple conversion of pressure to proportional standard signal.

Features

- For measuring pressure in liquids, gases and vapours
- Sturdy device with ceramic diaphragm
- High precision
- High positive pressure protection
- High vibration resistance
- Low hysteresis
- Standard signal 2...10 V or 4...20 mA
- Pressure sensor made of stainless steel for aggressive media
- With standard plug as per DIN EN 175301-803-A

Technical Details

Power Supply
Power Supply See type list
Electrical connection DSI: Two-wire / DSU: Three-wire
Parameters
Temperature dependence Zero point 0.07% FS/K
  Measuring range 0.05% FS/K
Admissible load DSU: Ub ≥ 15 V ≥ 5 kΩ / Ub ≥ 15 V ≥ 5 kΩ
  DSI: (Ub-6 V)/0.02 A
Inputs/Outputs
Hysteresis < 0.5% FS
Linearity < 1% FS



Overview

Type Measuring Range (bar) Output Signal Power Supply Maximum Pressure Power Consumption
DSU203F002 0. 2.5 bar 0...10 V 24 V=/~ 8 bar 24 V=/~, 0.5 W (VA)
DSU206F002 0...6 bar 0...10 V 24 V=/~ 20 bar 24 V=/~, 0.5 W (VA)
DSU210F002 0...10 bar 0...10 V 24 V=/~ 32 bar 24 V=/~, 0.5 W (VA)
DSU216F002 0...16 bar 0...10 V 24 V=/~ 50 bar 24 V=/~, 0.5 W (VA)
DSU225F002 0...25 bar 0...10 V 24 V=/~ 80 bar 24 V=/~, 0.5 W (VA)
DSI203F002 0. 2.5 bar 4...20 mA 24 V= 8 bar 24 V=, 0.7 W
DSI206F002 0...6 bar 4...20 mA 24 V= 30 bar 24 V=, 0.7 W
DSI210F002 0...10 bar 4...20 mA 24 V= 32 bar 24 V=, 0.7 W
DSI216F002 0...16 bar 4...20 mA 24 V= 50 bar 24 V=, 0.7 W
DSI225F002 0...25 bar 4...20 mA 24 V= 80 bar 24 V=, 0.7 W



Downloads

Datasheet
Fitting Instruction
