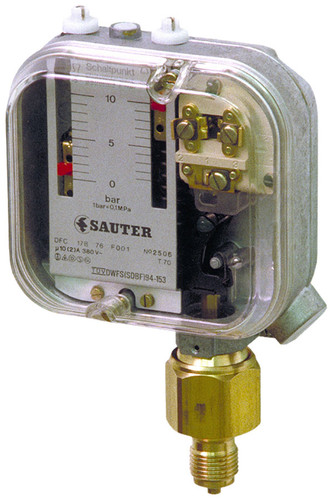

DFC 17B-27B Heavy-Duty Pressure Switch
Hover over image to zoom
Product Description
Control and monitoring according to needs and with no auxiliary energy.
Features
- For regulating and monitoring pressure in liquids, gases and vapours
- Especially suitable for installations subject to vibrations
- Contact rating 1 mA/6 V to 10 A/400 V
- Gold-plated silver contacts, vibration-proof snap-action switch with single-pole change-over switch
- Upper and lower switching points can be set independently of each other
- Sealable
- Splashproof
- DFC17B**F001: Pressure sensor made of brass for non-aggressive media
- DFC27B**F002: Pressure sensor made of stainless steel for aggressive media
Technical Details
| Power Supply | |
| Maximum load with gold-plated contacts | 200 mA, 50 V |
| Minimum load with gold-plated contacts | 1 mA, 6 V |
| Maximum load with silver-plated contacts | 10(2) A, 400 V~ (25 W), 250 V= |
| Minimum load with silver-plated contacts | 100 mA, 24 V |
| Parameters | |
| Pressure connection | G½" male |
Overview
| Type | Setting Range | Min. Change For Reset | Maximum Pressure | Admissible Sensor Temperature | Admissible Vacuum Loading | Weight |
| DFC17B54F001 | 0...2.5 | 0.14 | 16 | 70 | -0.7 | 1.2 |
| DFC17B58F001 | 0...6.0 | 0.18 | 16 | 70 | -1 | 1.2 |
| DFC17B59F001 | -1...5.0 | 0.2 | 16 | 70 | -1 | 1.2 |
| DFC17B76F001 | 0...10 | 0.5 | 40 | 70 | -1 | 1.1 |
| DFC17B78F001 | 0...16 | 0.5 | 40 | 70 | -1 | 1.1 |
| DFC17B79F001 | 16...32 | 0.8 | 42 | 70 | -1 | 1.1 |
| DFC17B96F001 | 0...25 | 1.7 | 100 | 70 | -1 | 1 |
| DFC17B97F001 | 25...50 | 2 | 100 | 70 | -1 | 1 |
| DFC17B98F001 | 0...40 | 1.8 | 100 | 70 | -1 | 1 |
| DFC27B26F002 | -1...2.5 | 0.3 | 21 | 110 | -1 | 0.9 |
| DFC27B43F002 | 0.5...6.0 | 0.3 | 21 | 110 | -1 | 0.9 |
| DFC27B46F002 | 1...10 | 0.3 | 21 | 110 | -1 | 0.9 |
| DFC27B52F002 | 2...16 | 0.3 | 21 | 110 | -1 | 0.9 |
