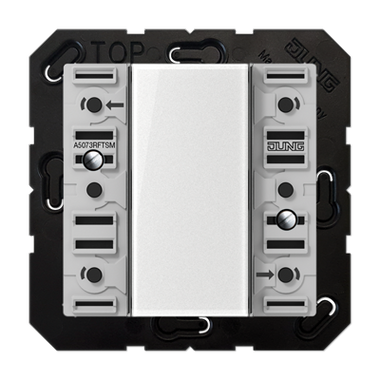

[A/AS][F50] KNX RF Radio Transmitter Module 3-Gang

Hover over image to zoom

  • Image 1
Jung
£111.30 (inc VAT) £92.75 (exc VAT)
SKU:
A5073RFTSM
Weight:
0.08 KGS
Availability:
5 - 10 days lead time

 Product Description

including transparent cover ref.-no.: A 50 NA
for cover kit 3-gang, ref.-no.: A 503 TSA ..
Project design and commissioning with ETS5 or a more recent version.
ETS product family: Push-button
Product type: 3-gang push-button
3 green LED: actuator status
1 red LED: transmission status

Spare part:
Transparent cover ref.-no.: A 50 NA

Accessories:
Neutral cover ref.-no.: A 50 NA W, A 50 NA WW, A 50 NA SW, A 50 NA AL, A 50 NA CH, A 50 NA MO

Intended Use

- Radio operation of loads, e.g. light on/off, dimming, Venetian blinds up/down, brightness values, calling up and saving light scenes
- Operation in cabled KNX systems via radio converter (ref.-no.: MK 100 RF)
- Mounting on appliance box according to DIN 49073, screw fixing on walls or adhesive fixing on smooth, even surfaces (glass). Adhesive pad included.

Characteristics

- Push-button functions for switching, dimming, blinds control, valuators, light scenes, etc.
- Button pairs for push-button function or rocker function
- Status indication with LED
- Integrated temperature sensor
- Battery-powered device (battery compartment accessible from front)

Technical Details

Rated voltage: DC 3 V
Battery type: 1 x lithium CR 2450N (included)
Ambient temperature: -5 ... +45 °C
Relative humidity: max. 80 % (no condensation)
Radio frequency: 868.0 ... 868.6 MHz
Transmitting power: max. 20 mW
Transmission range in free field: typical 100 m



Downloads

Operating Instruction
Manual
ETS File
