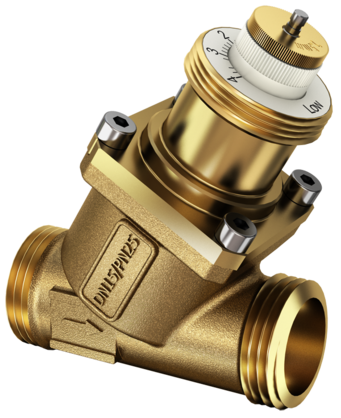

2-Way Regulating Valve for Dynamic Hydronic Balancing PN25

Hover over image to zoom

  • Image 1
  • Image 2
SAUTER
£111.50 (inc VAT) £92.92 (exc VAT)
Weight:
0.50 KGS
Availability:
5 - 10 Days Lead Time

 Product Description

How energy efficiency is improved
Automatic dynamic hydronic balancing with the SAUTER Valveco compact regulating valve provides a correct supply to the downstream consumers and a reduction of temperature variations in the room, so that the use of energy is more accurate and more efficient

Features

- Regulating valve with three functions: Control, preset maximum volume flow, automatic flow regulation
- Range 30…11500 l/h
- Easy to preset the max. required volume flow
- Versions with and without pressure measurement nipple
- The valve is closed when the spindle is moved in
- Closing procedure against the pressure
- Slight adaptation of the proven SAUTER actuator technology
- Regulating valve with female (DN 10...DN 32) or male thread (DN 40 and DN 50) as per DIN EN ISO 228-1
- Flat-sealing regulating valve
- Differential pressure across the control unit is kept constant; valve authority 1
- Valve body and plug made of dezincification-resistant (DZR) brass
- Stainless-steel spindle
- Temperature range of medium 0…120 °C

Technical Details

Parameters
Nominal pressure 25 bar
Maximum operating pressure PN 25
Valve characteristic Linear
Leakage rate 0.01%
Ambient conditions
Admissible operating temperature for valve 0...120 °C
Admissible operating temperature for valve in combination with AXT 211, AXS 215, AXM 217 (S) and AVM 215(S) 100 °C at the valve



Types

Type Nominal diameter(DN) Volume flow range (l/h) Control range min Δp...max Δp(kPa) Valve stroke (mm) Connection / tolerance class Pressure measurement nipple Weight (kg)
VDL010F200 10 65...370 14...800 5 G½" B 0.36
VDL010F201 10 65...370 14...800 5 G½" B 0.45
VDL010F210 10 30...200 14...800 2.5 G½" B 0.36
VDL010F211 10 30...200 14...800 2.5 G½" B 0.45
VDL015F200 15 100...575 14...800 2.5 G¾" B 0.38
VDL015F200H 15 220...1330 8...800 5 G¾" B 0.38
VDL015F201 15 100...575 14...800 2.5 G¾" B 0.47
VDL015F210 15 65...370 14...800 5 G¾" B 0.38
VDL015F201H 15 220...1330 8...800 5 G¾" B 0.47
VDL015F211 15 65...370 14...800 5 G¾" B 0.47
VDL015F220 15 30...200 14...800 2.5 G¾" B 0.38
VDL015F221 15 30...200 14...800 2.5 G¾" B 0.47
VDL020F200 20 220...1330 15...800 5 G1" B 0.4
VDL020F201 20 220...1330 15...800 5 G1" B 0.5
VDL020F210 20 160...990 15...800 4 G1" B 0.4
VDL020F210H 20 300...1800 8...800 5.5 G1" B 0.4
VDL020F211 20 160...990 15...800 4 G1" B 0.5
VDL020F211H 20 300...1800 8...800 5.5 G1" B 0.5
VDL020F220 20 100...575 14...800 2.5 G1" B 0.4
VDL020F221 20 100...575 14...800 2.5 G1" B 0.5
VDL025F200 25 600...3609 8...800 5.5 G1¼" B 1.02
VDL025F201 25 600...3609 8...800 5.5 G1¼" B 1.12
VDL025F210 25 280...1800 8...800 5.5 G1¼" B 0.51
VDL025F211 25 280...1800 8...800 5.5 G1¼" B 0.62
VDL032F200 32 550...4001 8...800 5.5 G1½" B 1.17
VDL032F201 32 550...4001 8...800 5.5 G1½" B 1.27
VDL040F201 40 1370...9500 8...800 15 G1½" B 3.28
VDL050F201 50 1400...11500 8...800 15 G2" B 3.71



Downloads

Datasheet
Fitting Instructions: VLD
